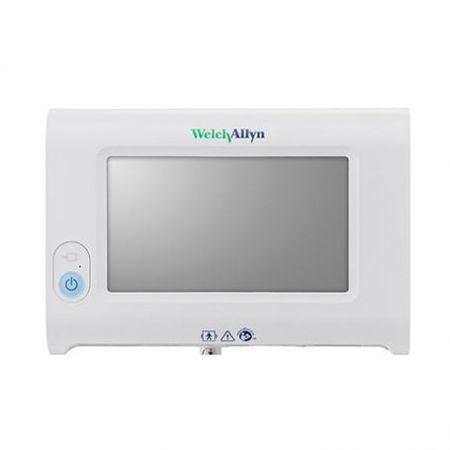

Connex Spot Monitor (CSM) NIBP, Nonin SpO2

Specification

- Dimensions (H*W*D): 166cm * 30cm * 11cm
- Weight: 1.7kg (including battery)
- Power Source: Mains power with rechargeable battery - provided through mounting options
- Average Battery Life: Min 5 hours (continuous monitoring. Max 8 hours (10min interval cycles)
- BP Range (Adult and Paediatric): 30 to 260 mmHg (Sys) and 20 to 220 mmHg (Dia).
- BP Range (Neonatal): 20 to 120 mmHg (Sys) and 10 to 110 mmHg (Dia).
- Pulse Range From BP Module (Adult and Paediatric): 40 to 200 bpm
- Pulse Range From BP Module (Neonate): 35 to 220 bpm
- Pulse Calibration Accuracy: ± 5%
- SPO2 Range: 70% to 100%
- Pulse Range From SPO2 Module: 18 to 300 bpm

Feature

- Large, easy to read colour touchscreen display.- Suitable for neonatal, paediatric and adult patients.
- Spot or interval measurement modes available.
- Upgradeable design.
- Contains SureBP NiBP and Nonin SPO2 modules.
- SureBP NiBP takes 15 seconds to provide an accurate reading.
- NiBP module is compatible with the Welch Allyn Flexiport cuff range.
- Power supplied through available mounting options desk mount, wall mount or rolling stands
- 2 year limited warranty - extended warranty available for purchasing.
- 3 year warranty on Reusable FlexiPort Blood Pressure Cuff
- 1 year warranty on other accessories (incl. battery)
- 90 day warranty applies for Power Supply
- 90 day exchange warranty applies to SPO2 sensors.
